Beschreibung
Twotter Revived v0.5.36
This exceptionally long development phase was driven by CCM's release of the Crazy Completionist Mod for GNS530/430 and the discovery of rich troves of reference materials, foremost data collected by NASA for N607NA, the DHC6-100 of Glenn Research Center's icing research.
de Havilland graciously provided a copy of the Maintenance Manu... JUST KIDDING ofc I found it somewhere on the Interwebs and de Havilland stays on the long list of companies and institutions that never responded to my attempts to contact them let alone offered help. Other reference materials used in creating this release: the FAA and EASA type certificates, Gas Turbine Combustion by Arthur H. Lefebvre, the PT6A training manuals and engine test procedures, Hartzell maintenance manuals, Wipaire float manuals, materials from Canada's NRC, the Garmin GNS 530 Pilot's Guide, the KI 525A and KT 76C pilot's guides, the KT 76C installation and maintenance manuals, Honeywell's EGPWS manuals and the FAA's TAWS standards, FAA NASR data for the radar sites, and a bunch more.
Thanks to CCM, first of all, for the GNS mod, and for the help getting the flight model on the book. <3 Thanks to Helloween and tredsell (both flightsim.to) for showing me how to make the passenger seating work.
If you installed the mod before, REMOVE all mod-related folders from your Community folder, especially old camera mods and the old propblur mod.
After installing, open the EFB's Config tab and pick your profile again, or check that the settings are what you want. The profiles changed and several options moved to new pages.
Twotter Revived
Twotter Revived is a free, community-built overhaul of the Aerosoft Twin Otter (MSFS 2020) for MSFS 2024. The goal is a faithful recreation of the aircraft, replacing stock sim systems with custom code where the sim falls short. Engines, electrics, radio navigation, and countless other systems are simulated in depth and interact with each other. The flight model has been redone and refined with invaluable help from CanadianCaptainMoustache.
Introduction
By now, this is probably what the modding community would call a "Total Conversion". Almost every system in the aircraft has changed, many have been replaced and redesigned, and even some core sim systems had to go in favor of custom implementations.
This is a test version. Please flag any issues you notice. I try to make sure the releases published on flightsim.to don't contain any blockers or stoppers that would keep you from flying, but bugs cannot be avoided, and if you find one, please return it to its rightful owner.
If you run into issues or have questions, contact me here or on Discord: aurel#3010 (if you're active on Discord, we most likely share a few flightsim servers). If you know about the aircraft IRL or aircraft development in MSFS, I'm especially grateful for your input and suggestions.
Installation
NOTE: Because of previous drama around Aerosoft mods, this mod is distributed as an archive containing xdelta files and an install script. You will need an original, unmodded installation of the Twin Otter 1.1.1 (installed using Aerosoft One, the legacy Aerosoft installer, or by other means) so the installation process can READ the original files and WRITE the changed files to the mod folder. Your original files will not be touched.
Until the install script has been executed, the mod will be inactive.
Before you report an installation error, please consider reinstalling a fresh copy of the Aerosoft Twin Otter in the last release version (1.1.1) and trying with that folder. If the errors persist, please contact me so we can figure out why they happen. The installer should now work with all popular versions of 1.1.1.
The contents of the zip file:
charliebravo-aircraftmod-twin-otter: this is all you need, you must unpack this to use the mod, the rest is optionalcompanion_mods/charliebravo-soundmod-twin-otter-turbineduke: this is an optional sound mod, you must own the Black Square Turbine Duke to use itcompanion_mods/charliebravo-y-cameras-twin-otter-*: these are optional mods that change the cockpit camera views, only one of them can be active at a time.historic_ndb_userpoints.csv: this file can be imported into Little Navmap to show historic (decommissioned) NDB beaconspresets/: this folder contains a set of presets for FSUIPC7 and possibly similar tools
You will still need to have the base model (i.e. the aerosoft-aircraft-twin-otter folder) in your Community/ folder for the mod to work.
Step by step:
- IMPORTANT: if you installed the mod before, REMOVE all mod-related folders from your Community folder, especially old camera mods and the old propblur mod (
z_aerosoft-twin-otter_propblur_mod) - UNPACK directly into Community or wherever you keep your Community add-ons
- OPEN the folder
charliebravo-aircraftmod-twin-otter - optionally, if you're paranoid or they are actually after you: EXAMINE install.bat and install.ps1, overwrite the xdelta executable with a version you trust
- DOUBLE-CLICK
install.bator RUNinstall.ps1in PowerShell (install.batis just a wrapper that executes the PowerShell script) - follow the prompts and SELECT your unmodified
aerosoft-aircraft-twin-otterfolder
In a perfect world, the changes to the mod folder are applied and you end up with a working mod and the lawyers have no leverage against me. I apologize for this, I can assure you that it has been even less fun to set this up. I contacted Aerosoft and Microsoft to get their blessing, but, so far, I didn't receive a response. It appears our Twotter is in some legal limbo: Aerosoft sold the rights to Microsoft, and now neither party appears to have any interest in the legacy product. xdelta helps me to stay on the safe side.
Liveries
In the mod folder, there's a tool fix-twotter-livery. Use it to fix any livery so it works in MSFS 2024 and shows up as a livery instead of a variant.
The Turbine Duke sound mod
This version includes an optional sound mod that re-uses the Black Square Turbine Duke soundbank with kind permission from Black Square and Boris Audio Works.
This sound mod only works for owners of the Black Square Turbine Duke. To enable the sound mod, copy it from companion_mods (do not copy companion_mods itself!) to your Community/ folder and launch install.bat in the charliebravo-soundmod-twin-otter-turbineduke folder.
If you experience any sound issues in the Turbine Duke while this mod is installed (and they go away if you disable the mod), please contact me. We don't want to bother the nice people of Just Flight with problems created by the Twotter.
Sound mod installation step by step:
- COPY the folder
charliebravo-soundmod-twin-otter-turbinedukefrom thecompanion_modsfolder in the archive to your Community folder - OPEN the copied folder
charliebravo-soundmod-twin-otter-turbineduke - DOUBLE-CLICK
install.bator RUNinstall.ps1in PowerShell - follow the prompts and SELECT your
bksq-aircraft-turbinedukefolder (usually, it is auto-detected)
Resources
- Project page on flightsim.to
- Discussion thread on the official MSFS forums
- Previews, release candidates, WASM source on Google Drive
- Twotter Revived manual
Aircraft manuals
- Microsoft DHC-6 Twin Otter
- Checklists (PDF)
- Introduction flight (PDF)
- Aerosoft DHC-6 Twin Otter
Product Manual MSFS (PDF)
- Product Manual FSX (PDF)
Thanks
- CanadianCaptainMoustache — for continuous input, advice, testing, the flight model, his GNS 530/430 mod (the Crazy Completionist Mod), which is ported into our GNS, and the prop blur mod our prop discs grew out of.
- JoseColme — for sharing his experience flying the type.
- Bagolu — for the wheel-chock visual model, and for fitting the ground power unit to the aircraft.
- Helloween and tredsell (flightsim.to) — for figuring out how to make pax work.
- hobanagerik — for tireless support and encouragement, better lights and cameras.
- Black Square and Boris Audio Works — for their kind permission to use the Turbine Duke soundbank.
- MaxHype — for finding the cause of the random WASM crashes in MSFS 2024, and for sharing the fix.
Changes to Aerosoft Twin Otter 1.1.1
- EFB "Twin Otter" app
- Config system
- Interactive and automatic checklists
- Persistence system
- New flight model
- One of the most advanced PT6A-27 models in non-professional flight simming
- Propellers: working autofeather, beta and reverse, new prop discs

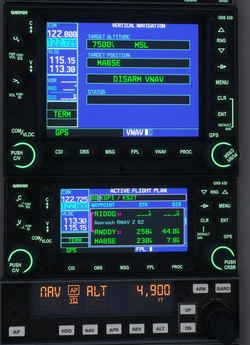

- Custom or improved avionics (GNS 530/430 with CCM's Crazy Completionist Mod, KAP 140, KR 87, KT 76C, EGPWS)
- Gyros and compass system
- Custom radio navaids incl. a historic NDB database with one of the most advanced signal propagation models in non-professional flight simming
- Overhauled and updated fuel system, electrical system, hydraulic system, brakes
- Custom ice protection code (in preparation for custom icing)
- Cabin climate
- Custom wear & tear system (WIP)
- Walkaround: clickable doors, control surfaces and propellers you can move by hand, wheel chocks, GPU cart
- Pilot and co-pilot avatars, passengers in the cabin
- Reworked cockpit and exterior lighting
- Countless improvements to the cockpit
- Countless bug fixes
License & credits
The base aircraft is not redistributed by this project: the mod ships as binary deltas applied against your own copy of the Aerosoft Twin Otter 1.1.1 (see Installation). The original add-on remains the property of Aerosoft or Microsoft, I don't even know. The mod includes modified versions of sim assets which are used under Microsoft's Game Content Usage Rules (https://www.xbox.com/developers/rules) or their respective licenses (like Working Title's limited MIT license). This is a non-commercial fan project, not affiliated with, endorsed by, supported by, or even acknowledged by Microsoft, Asobo, or Aerosoft.
Source
I cannot distribute the complete project source because there are still leftovers of the base model in cfg and xml files, and this is exactly what killed the first Twotter mod by CCM. What I can distribute is the heart of the mod: the code the WASM module is built from. Apart from the bundled components listed below, it's in the public domain and you're more than welcome to take it apart, use and redistribute it. You can find it where the preview versions are (see Resources).
Bundled components
- Flap actuator audio (
fbw_flap_actuator.wav) — from FlyByWire Simulationsa32nx-wwise, licensed CC BY-NC-SA 4.0 (Attribution / NonCommercial / ShareAlike). - Ground power unit model (
CB_GPU) — "GPU (Aiport Ground Power Unit)" by omri_ha_muglob, licensed CC BY 4.0 (Attribution). Fitted to the Twin Otter by Bagolu. - Longley-Rice / ITM propagation core — the Irregular Terrain Model, created by the U.S. Department of Commerce NTIA/ITS, obtained via libradio by Saso Kiselkov. The files we ship carry no copyright notice or license block of their own; what we redistribute of Saso's work is his thread-safety modification inside them, and CDDL-1.0 is listed as the license for those parts of libradio. We assert no license of our own over any of it. Details:
CBDHC6/third_party/THIRD_PARTY_NOTICES.md. - DEFLATE inflate (
puff) — Mark Adler / zlib, zlib-style permissive license. - Laboured breathing audio (
cb_breathing_loop.wav) — cut from "male breathing long.wav" by boziav, licensed CC BY-NC 4.0 (Attribution / NonCommercial). - GNS 530/430 — Working Title's GNS 530/430, modified, under Working Title's "Modified MIT" license. It includes our port of CCM's Crazy Completionist Mod, shipped with his permission.
- Fonts — Roboto by Google, licensed Apache-2.0, and DSEG14 Classic by keshikan, licensed SIL Open Font License 1.1 (Reserved Font Name "DSEG").
- xdelta3 (
xdelta3.exe, used by the install script) — by Joshua MacDonald, version 3.1.0, licensed Apache-2.0. - Livery tool (
fix-twotter-livery.exe) — built withgo-webview2(MIT, its loader ISC),golang.org/x/sys(BSD-3-Clause),rardecode(BSD-2-Clause) and the Go standard library (BSD-3-Clause), with Roboto (Apache-2.0) embedded.
Data providers — thank you
- Terrain elevation based on ETOPO 2022 (NOAA NCEI).
- Coastlines, water bodies and ice from Natural Earth (naturalearthdata.com), and the GNS basemap (roads, railroads, rivers, borders, place names).
- Land cover from ESA WorldCover 2021 v200 — © ESA WorldCover project 2021 / Contains modified Copernicus Sentinel data (2021) processed by ESA WorldCover consortium, CC BY 4.0.
- Climate zones from the Köppen-Geiger maps by Beck et al. (2018) (Present and future Köppen-Geiger climate classification maps at 1-km resolution, Scientific Data), CC BY 4.0.
- Some navaid service ranges based on FlightGear (originally the X-Plane navdata compiled by Robin A. Peel).
- Historic NDB database based on OurAirports, FlightGear and older X-Plane navdata (Robin A. Peel), and KonBriefing's historic radio beacon lists.
- Radar sites checked against FAA NASR data.
Twotter Revived is a community project. It is not endorsed or certified by De Havilland Aircraft of Canada. It is not approved by anyone in any way, shape, or form for training or any other real-world application. Any real-world references are provided for entertainment and educational simulation use only and may be incomplete, outdated, configuration-specific, or inaccurate.
